Tilt Up Wall Braces

Tilt-Up - Precast - Steel Erection - Poured in Place - WALL BRACES

  • Now Available
  • (Good Condition – Great Prices)

Used galvanized and powder coated paint Tilt-Up Wall Braces in six different sizes. Please reach us for an up to date itemized quantity list and great pricing.

  • 888-322-6323
  • BUY ALL OR PART
Galvanized Tilt Wall Braces               Length Feet-Inches [Meters]                Weight
Lbs [Kg]		     Ultimate Load lbs [kN]
Minimum Maximum Max. Min.
7 to 13 Tilt up Brace 7 3-5/8 [2.2] 12 9-1/2 [3.9] 74.2 [33.6] 14,834 [65.98] 8,356 [37.18]
15 to 24 Tilt up Brace 15 1-1/8 [4.6] 24 3-5/16 [7.4] 114.1 [51.7] 13,290 [59.12] 2,890 [12.86]
24 to 39 Tilt up Brace
without Knee Bracing		 24 3-5/16 [7.4] 32 9-7/10 [10.0] 175.5 [79.6] 7,792 [34.66] 3,200 [14.23]
24 to 39 Tilt up Brace
with Knee Bracing		 24 3-5/16 [7.4] 32 9-7/10 [10.0] 236.4 [107.2] 11,514 [51.2] 7,458 [33.18]

Galvanized Tilt Wall Braces

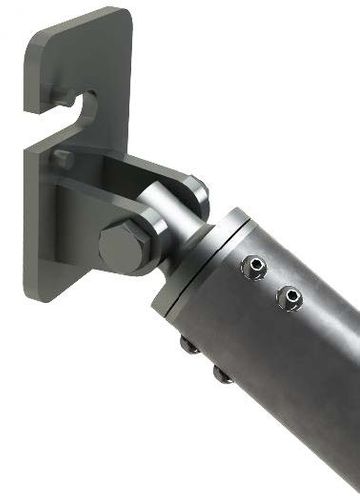

  • ol2.jpeg

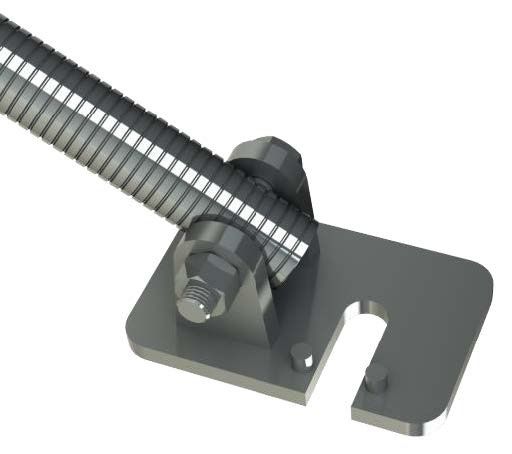

  • old12.jpeg
Powder Coated Tilt-Up Braces               Length Feet-Inches [Meters]                Weight
Lbs [Kg]
Minimum Maximum
8'2" to 14' Tilt up Brace 8 2 [2.49] 14 0 [4.27] 93.0 [42.28]
13'6" to 23-4" Tilt up Brace 13 6 [4.11] 23 4 [7.11] 145.7 [66.23]
22'4" to 39' Tilt up Brace 22 4 [6.81] 39 [11.89] 224.42 [102.01]

Tilt-Up Wall Braces with powder coated paint

  • FWTUDx 3.jpeg

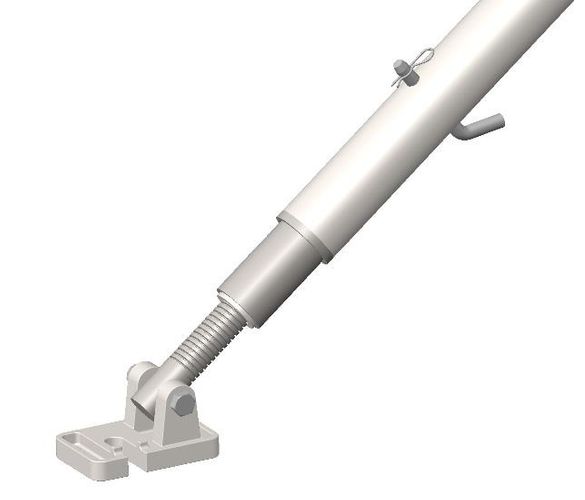

  • wallbracefoot.jpeg
