Miller Edge Fall Protection
Used Miller Edge Fall Protection System for Sale

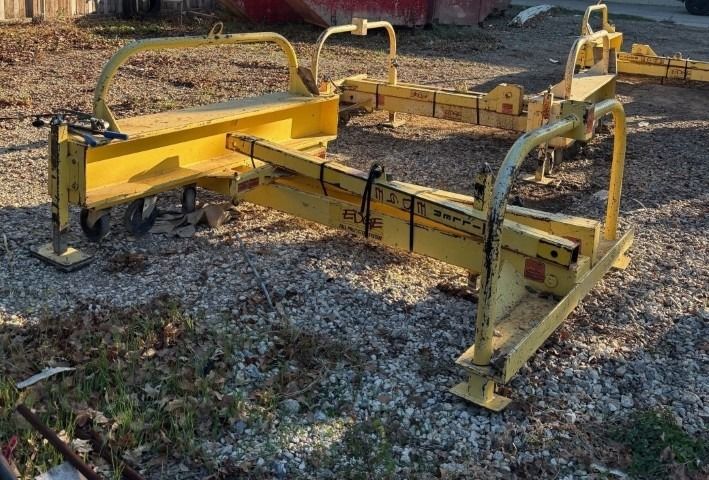

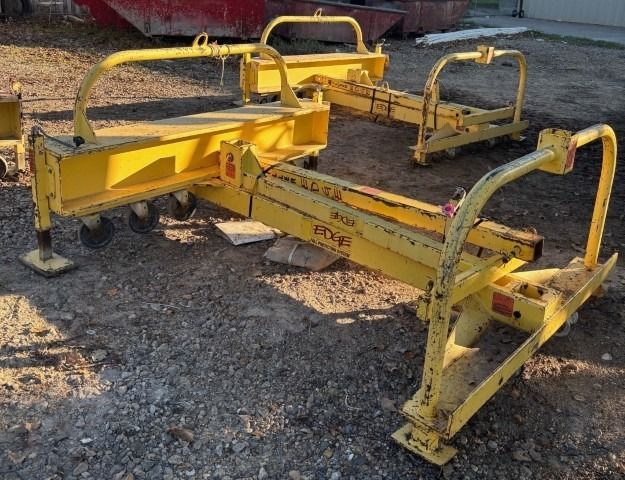

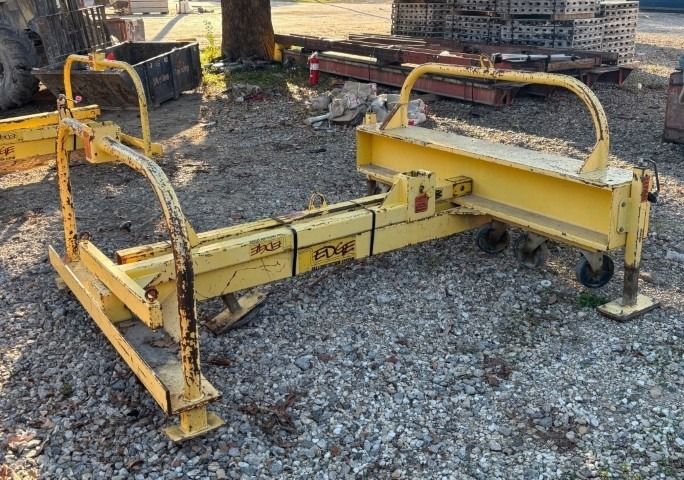

Three used Miller Edge Fall Protection Systems (Model 9081) are now available in good, job-ready condition. These portable engineered anchorage units protect decking crews on leading-edge work and eliminate the need for a safety monitor or temporary cable lifeline system.
Capacity: 2 workers per system | 620 lbs total weight capacity
Call for pricing and delivery: 888-322-6323
Technical Specifications
| Spec | Detail |
|---|---|
| Max Working Load | 310 lbs (140 kg) per attachment point 620 lbs (281 kg) total per unit |
| Unit Weight | 1,650 lbs (748 kg) |
| Max Working Distance | 26 ft forward 12 ft forward to each side |
| Decking Surface Requirement | Smooth surface with ≤ 5% slope |
| Frame | Painted steel |
| Casters | Althane, high-strength, non-marking, chip-resistant |
| Paint | Safety yellow enamel |
| Feet | Black high-strength rubber |
| Certification | Meets or exceeds OSHA 1926.502 |

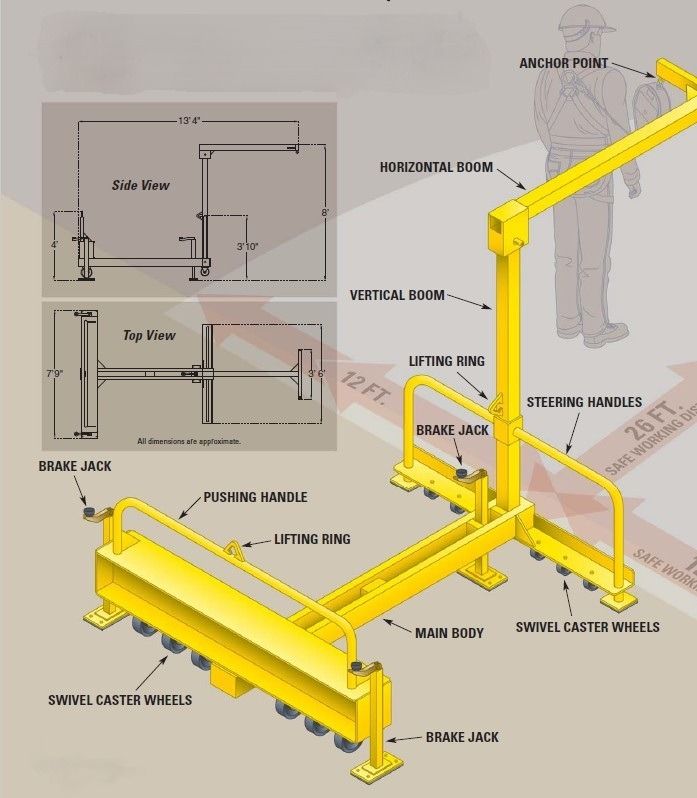

Miller Edge™ Fall Protection System – Model 9081

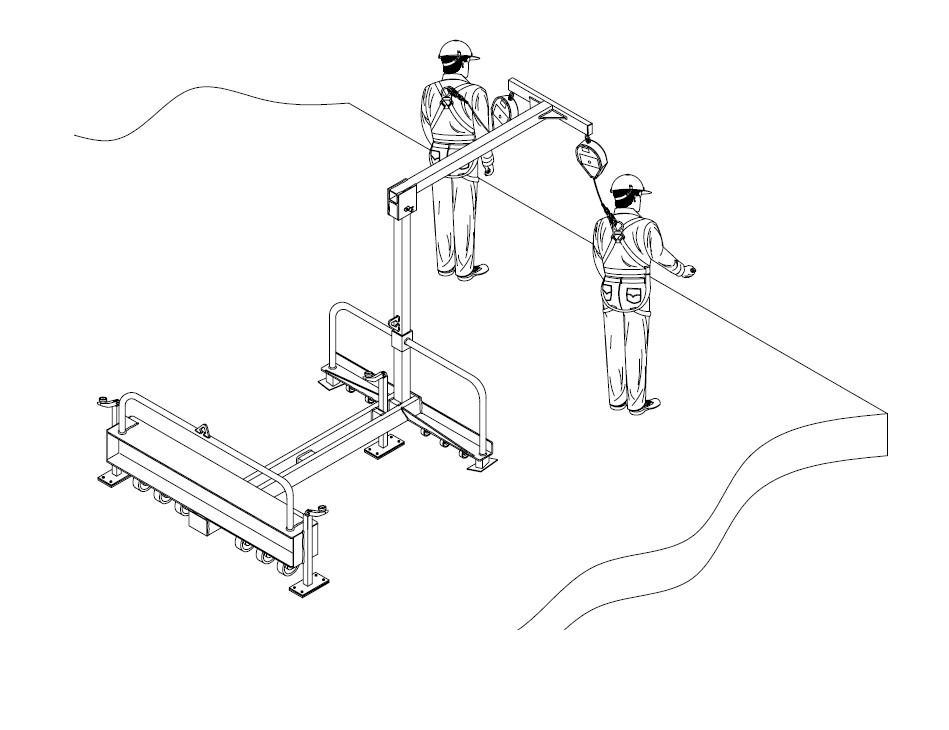

The Miller Edge is a freestanding, mobile overhead anchor point designed specifically for leading-edge deck construction. It provides 100% tie-off capability, reduces swing-fall hazards, and saves time compared with temporary cable systems.
Key Features
- Freestanding mobile overhead anchor point
- Solid Althane™ wheel casters for easy movement across the deck
- Two integral eye-bolt attachment points for self-retracting lifelines
- Predetermined lifting points for quick crane placement
- Heavy-duty steel construction with safety-yellow enamel paint
- Easy-access handles front and rear
- Redundant braking system
Ideal Applications
- Concrete deck construction
- Bridge decks
- Window washing
- Vault entry
- Rescue situations
